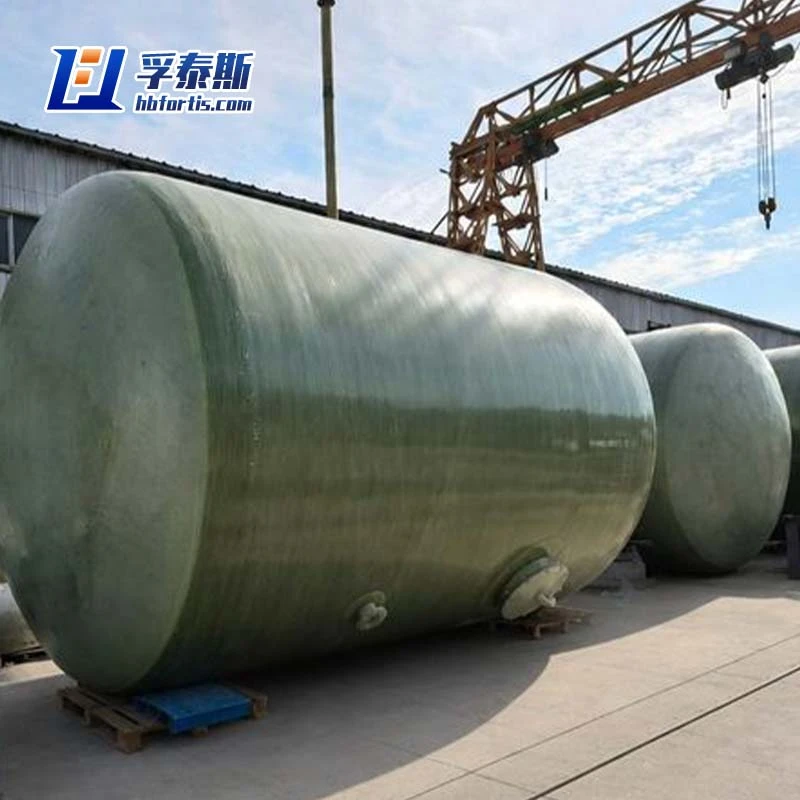

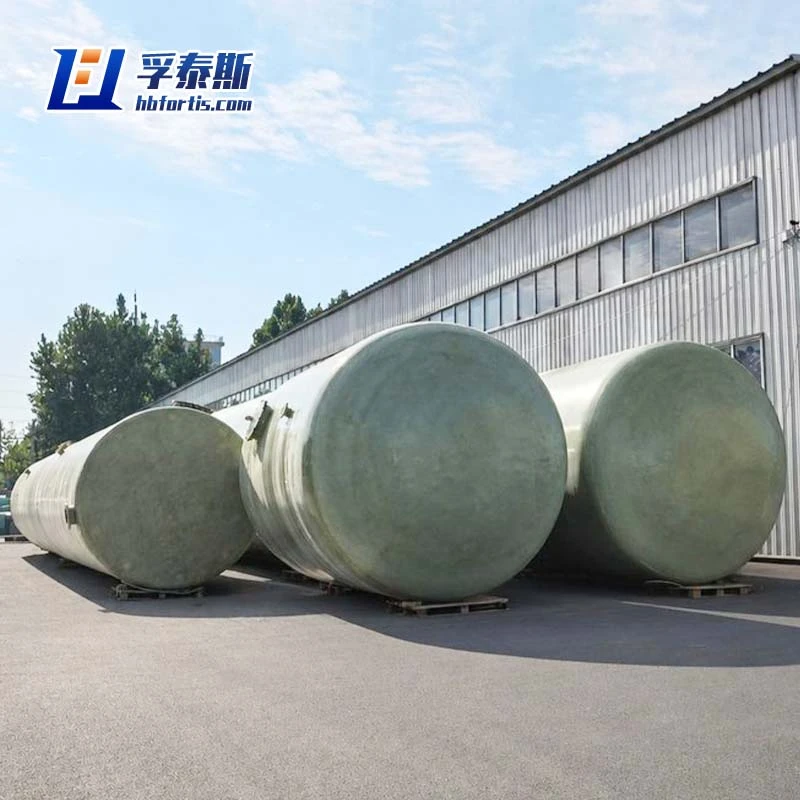

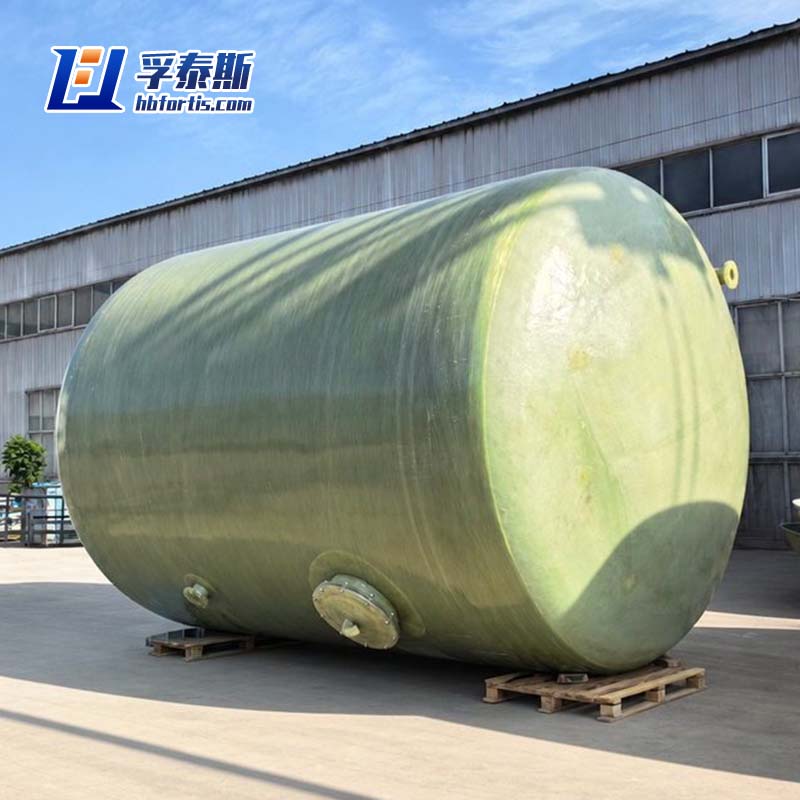

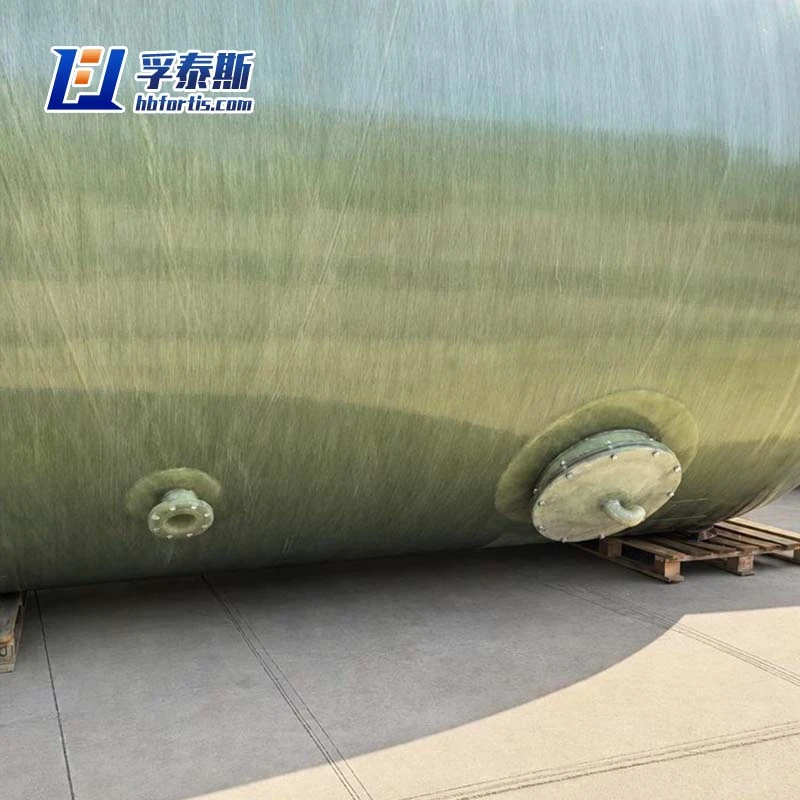

FRP Horizontal Storage Tank – Chemical Plant & Water Treatment Export Supplier

Name: FRP Horizontal Storage Tank – Chemical Plant & Water Treatment Export Supplier
Brand: Hebei Fortis Technology Co., LTD

As a dedicated China-based exporter and factory-direct supplier, we engineer FRP horizontal storage tanks specifically for demanding environments including chemical processing plants, municipal wastewater treatment facilities, and industrial fluid storage systems. Our filament-wound and hand-layup constructions provide superior resistance to hydrochloric acid, sulfuric acid, caustic soda, and organic solvents, while our horizontal design optimizes space utilization and low-profile installation. Unlike trading intermediaries, we control every stage from raw resin formulation to final hydrostatic testing, ensuring ASTM D3299 and ASME RTP-1 compliance. With over 12 years of export experience to Southeast Asia, the Middle East, Africa, and South America, we deliver custom diameters (1m–4m), capacities (1,000L–100,000L), and dual-laminate liners for elevated temperature conditions. Our lean production system guarantees 15–25 days lead time, backed by engineering support for foundation design, anchoring, and secondary containment integration—making us the supply-chain partner that reduces your total cost of ownership while meeting ISO 9001:2025 and CE certification standards.

Folleto de productos de Hebei Fortis Technology Co., Ltd

Descargar

Consulta ahora Siguiente producto

Product Advantages Parameter Specifications

Product Advantages

Corrosion Resistance Tailored to Your Specific Chemicals
Unlike carbon steel or stainless steel, our FRP horizontal tanks are engineered with resin systems (isophthalic, vinyl ester, or epoxy) that are chemically matched to your stored media—whether it's 37% hydrochloric acid, 98% sulfuric acid, sodium hypochlorite, or alkaline wastewater. The inner surface incorporates a corrosion barrier layer with high glass content (90% resin / 10% glass) to prevent blistering and micro-cracking, ensuring that your tank doesn't thin out or pit over time. This translates to 25–30 years of maintenance-free service in aggressive environments, eliminating costly recoating or replacement cycles.

Space-Saving Horizontal Configuration for Low-Profile Sites
Our horizontal design is purpose-built for locations with height restrictions, such as indoor chemical rooms, underground vaults, or trailer-mounted mobile units. With a low center of gravity, these tanks require simpler foundation works and less structural steel compared to vertical vessels. You can nest multiple units side-by-side or stack them with proper supports, making them ideal for modular plant expansions where floor space is at a premium. The horizontal orientation also simplifies gravity-fed drainage and bottom outlet placement, allowing near-complete evacuation of viscous fluids without residual heel.

Factory-Direct Pricing with Full Transparency
As the actual manufacturing plant—not a trading company—we publish our material take-off sheets, laminate schedules, and cure cycle logs upon request. You pay only for the actual weight of resin, glass fiber, and catalyst, plus your selected accessories (manways, level indicators, vents, and flanges). By bypassing intermediaries, we deliver 20–35% cost savings compared to Western distributors, yet we reinvest those margins into higher-grade UV stabilizers and thicker outer veils. Our ex-works or CIF quotes come with a clear breakdown of raw material costs, labor hours, and crating fees, so you know exactly what you are paying for.

Parameter Specifications

Product	Horizontal Storage Tank
F=D/4
Model	Volume(m³)	Diameter(mm)	Height(mm)	Number of Supports N1
FT-HST1	1	1000	1450	2
FT-HST2a	2	1000	2730	3
FT-HST2b	2	1200	1990	2
FT-HST2c	2	1400	1560	2
FT-HST3a	3	1000	4010	4
FT-HST3b	3	1200	2870	2
FT-HST3c	3	1400	2200	2
FT-HST4a	4	1200	3760	3
FT-HST4b	4	1400	2850	3
FT-HST5	5	1400	3500	3
FT-HST6	6	1600	3300	2
FT-HST7	7	1600	3800	3
FT-HST8a	8	1600	4300	3
FT-HST9	9	1600	4780	3
FT-HST10a	10	1600	5300	3
FT-HST10b	10	2000	4250	3
FT-HST11a	11	1600	5800	4
FT-HST11b	11	2000	4640	3
FT-HST12a	12	1600	6280	4
FT-HST12b	12	2000	5040	3
FT-HST12c	12	2200	3540	2
FT-HST15a	15	2000	6220	3
FT-HST15b	15	2200	4330	2
FT-HST15c	15	2400	3750	2
FT-HST18a	18	2000	7400	4
FT-HST18b	18	2200	5120	2
FT-HST18c	18	2400	4410	2
FT-HST20a	20	2000	8190	4
FT-HST20b	20	2200	5650	3
FT-HST20c	20	2400	4850	2
FT-HST20d	20	2600	4220	2
FT-HST25a	25	2000	8310	4
FT-HST25b	25	2200	6960	3
FT-HST25c	25	2400	5960	2
FT-HST25d	25	2600	5160	2
FT-HST25e	25	2800	3740	2
FT-HST30a	30	2200	8280	4
FT-HST30b	30	2400	7060	3
FT-HST30c	30	2600	6100	3
FT-HST30d	30	2800	4560	2
FT-HST30e	30	3000	4100	2
FT-HST35a	35	2400	8170	3
FT-HST35b	35	2600	7050	3
FT-HST35c	35	2800	5370	2
FT-HST35d	35	3000	4820	2
FT-HST40a	40	2400	9270	3
FT-HST40b	40	2600	7990	3
FT-HST40c	40	2800	6180	2
FT-HST40d	40	3000	5520	2
FT-HST50a	50	2600	9870	4
FT-HST50b	50	2800	6990	2
FT-HST50c	50	3000	6240	3
FT-HST60a	60	2800	8620	3
FT-HST60b	60	3000	7660	3
FT-HST70a	70	2800	10240	3
FT-HST70b	70	3000	9050	3
FT-HST80a	80	3000	10470	4
FT-HST80b	80	3000	11880	4
