We engineer FRP grating not for general floor use, but for aggressive exposure where steel fails within 18 months—think chlorine drip zones and splash decks. Our export track record covers 46 seawater desalination projects and 12 LNG terminals. Instead of quoting generic panels, we request your existing support beam spacing and load criteria, then propose either pultruded I-bar or molded square mesh with encapsulated grit. Every pallet ships with a digital mill certificate and batch-specific UV-resistance data. For EPC buyers, we provide step-by-step installation torque specs and cutting loss estimates, cutting your site waste below 2.5%. Trial orders welcome with engineering back-up within 4 working hours.
Folleto de productos de Hebei Fortis Technology Co., Ltd
Product Advantages
Corrosion Resistance
Unlike steel, our FRP grating is highly resistant to chemicals, moisture, and saltwater—perfect for harsh environments like marine platforms, wastewater treatment plants, and chemical factories.
Lightweight & Easy Installation
FRP grating is about 1/3 the weight of steel but offers comparable strength. This reduces transportation costs and allows for quick, labor-saving installation without heavy lifting equipment.
Slip-Resistant Surface

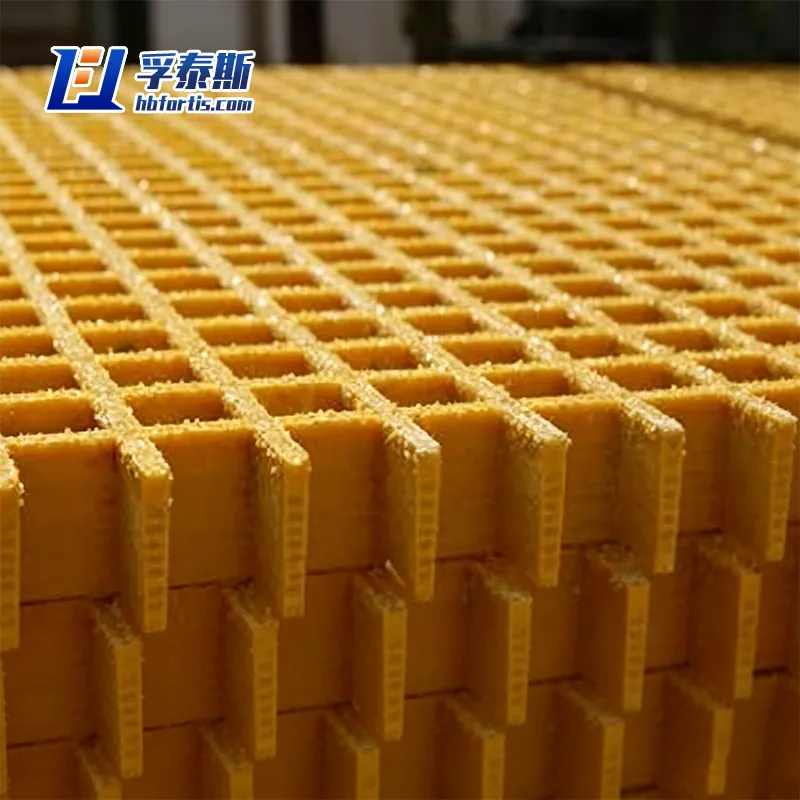

Available with grit-top or concave surfaces for excellent traction, ensuring safety in wet, oily, or icy conditions.
Non-Conductive
Electrically and thermally non-conductive, making it ideal for electrical rooms, substations, and railway platforms.
Low Maintenance
No painting, galvanizing, or regular upkeep needed. Simple water or steam cleaning keeps it looking new.
Customizable
Comes in various colors (yellow, grey, green, etc.), mesh sizes, and thicknesses. Can be cut, drilled, or shaped on-site to fit any layout.
Long Service Life
With UV-resistant additives, our FRP grating withstands prolonged sunlight exposure and extreme temperatures (-40°C to 80°C), lasting 20+ years in most applications.
Eco-Friendly
Made from recyclable materials, and its long lifespan reduces waste compared to steel or wood alternatives.
Parameter Specifications
|
Product |
FRP grating |
||
|
|
|||
|
Type |
Mesh size(mm) |
Thickness(mm) |
Length×Width(mm) |
|
FT-G3825a |
38×38 |
25 |
1220×3660 |
|
FT-G3825b |
38×38 |
25 |
1225×4005 |
|
FT-G3830a |
38×38 |
30 |
1220×3660 |
|
FT-G3830b |
38×38 |
30 |
1225×4005 |
|
FT-G3838a |
38×38 |
38 |
1220×3660 |
|
FT-G3838b |
38×38 |
38 |
1225×4005 |
|
FT-G3840a |
38×38 |
40 |
1220×3660 |
|
FT-G3840b |
38×38 |
40 |
1225×4005 |
|
FT-G3850a |
38×38 |
50 |
1220×3660 |
|
FT-G3850b |
38×38 |
50 |
1225×4005 |
|
FT-G4025a |
40×40 |
25 |
1220×3660 |
|
FT-G4025b |
40×40 |
25 |
1225×4005 |
|
FT-G4030a |
40×40 |
30 |
1220×3660 |
|
FT-G4030b |
40×40 |
30 |
1225×4005 |
|
FT-G4038a |
40×40 |
38 |
1220×3660 |
|
FT-G4038b |
40×40 |
38 |
1225×4005 |
|
FT-G4040a |
40×40 |
40 |
1220×3660 |
|
FT-G4040b |
40×40 |
40 |
1225×4005 |
|
FT-G4050a |
40×40 |
50 |
1220×3660 |
|
FT-G4050b |
40×40 |
50 |
1225×4005 |
|
FT-G5025a |
50×50 |
25 |
1220×3660 |
|
FT-G5025b |
50×50 |
25 |
1225×4005 |
|
FT-G5030a |
50×50 |
30 |
1220×3660 |
|
FT-G5030b |
50×50 |
30 |
1225×4005 |
|
FT-G5038a |
50×50 |
38 |
1220×3660 |
|
FT-G5038b |
50×50 |
38 |
1225×4005 |
|
FT-G5040a |
50×50 |
40 |
1220×3660 |
|
FT-G5040b |
50×50 |
40 |
1225×4005 |
|
FT-G5050a |
50×50 |
50 |
1220×3660 |
|
FT-G5050b |
50×50 |
50 |
1225×4005 |
|
FT-Gnn |
customized |
customized |
customized |
