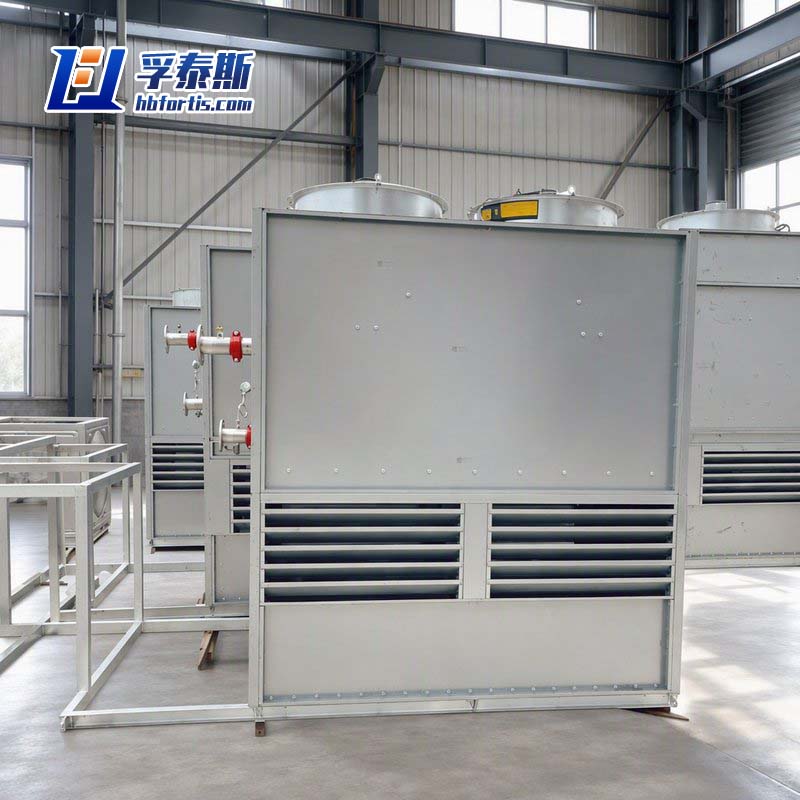

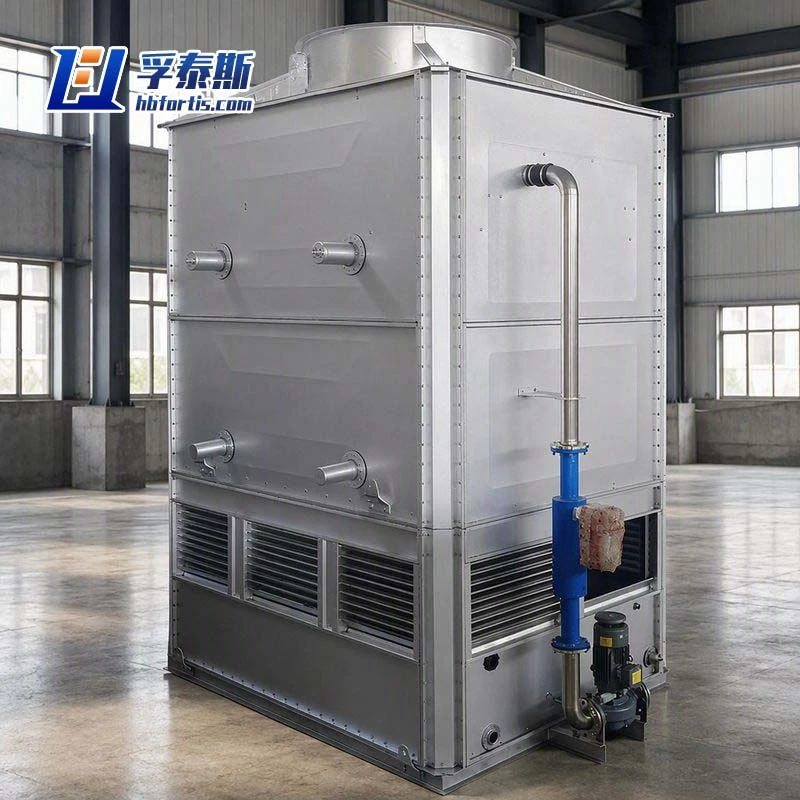

As an ISO-certified factory direct exporter, we specialize in the AHBLG-300 stainless steel closed-circuit cooling tower—engineered specifically for critical applications where water quality and corrosion resistance are non-negotiable, such as furnace jacket cooling in steel mills, hydrogen compressor intercoolers, and 24/7 server room chillers. Constructed with full 304/316L stainless steel casing and finless heat exchange coils, this model eliminates rust contamination and scaling risks, reducing annual maintenance downtime by over 40%. Our export advantage lies in integrated production: we control every welding procedure, fan balancing, and drift eliminator assembly in-house, ensuring consistent quality across containerized shipments. Backed by 3D BIM (建筑信息模型) modeling for pipe connection layouts and real-time production tracking, we offer EPC contractors a transparent, lead-time-guaranteed procurement channel that bridges the gap between premium European specs and competitive Asian manufacturing costs.
Folleto de productos de Hebei Fortis Technology Co., Ltd
Product Advantages
Full Austenitic Stainless Steel Construction – Corrosion Resistance Beyond Industry Standards
Unlike conventional galvanized or carbon steel towers that suffer from pitting and rust within 3–5 years in aggressive environments, the AHBLG‑300 is fabricated entirely from premium 304 or optional 316L stainless steel – including the casing, basin, fan stack, and heat exchange coils. This metallurgical choice provides intrinsic resistance to chloride attack, acidic exhaust fumes, and process fluid carryover. For coastal power plants, chemical dosing areas, or paper mills with humid, sulfur‑laden air, this tower maintains its structural integrity and thermal surface cleanliness for over a decade, drastically reducing the lifecycle replacement cost and unplanned shutdowns caused by corrosion failure.
Engineered for High‑Purity and Sensitive Process Cooling Applications

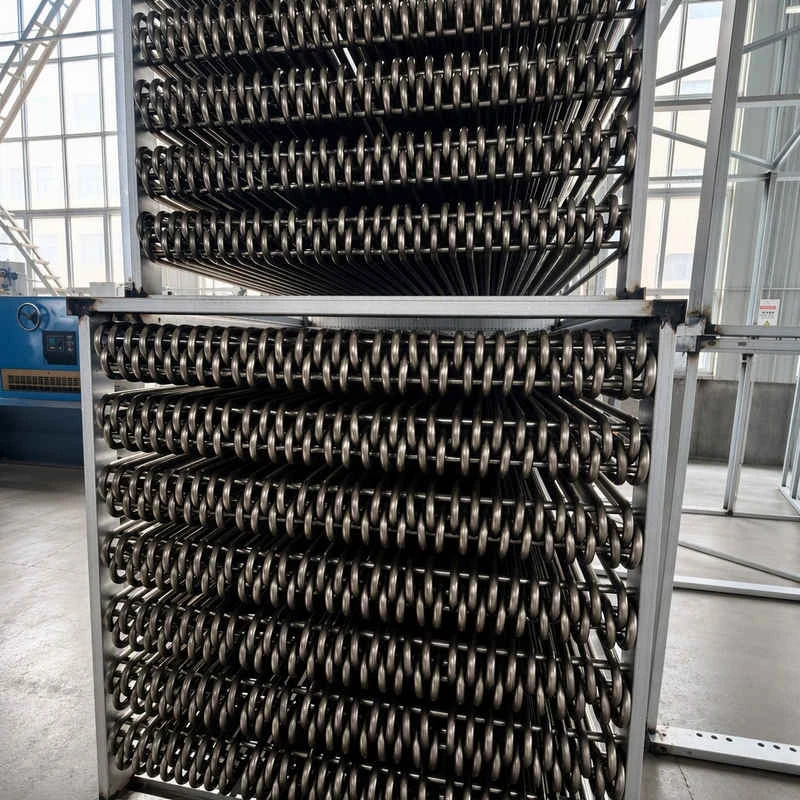

The AHBLG‑300 is a closed‑circuit design that isolates the primary cooling fluid (demineralized water, glycol mixtures, or specialty heat transfer fluids) from the external air and spray water. Thanks to the stainless steel coil bundle with fully welded joints, there is zero risk of rust particle shedding or galvanic contamination – a critical requirement for semiconductor wafer fab chillers, pharmaceutical fermentation jacketed reactors, and precision injection molding machines. This feature ensures that your process side remains pristine, eliminating the need for costly side‑stream filtration or frequent fluid replacement, while maintaining stable outlet temperatures within ±0.5°C of setpoint.
Optimized Thermal Performance with Anti‑Fouling Coil Geometry

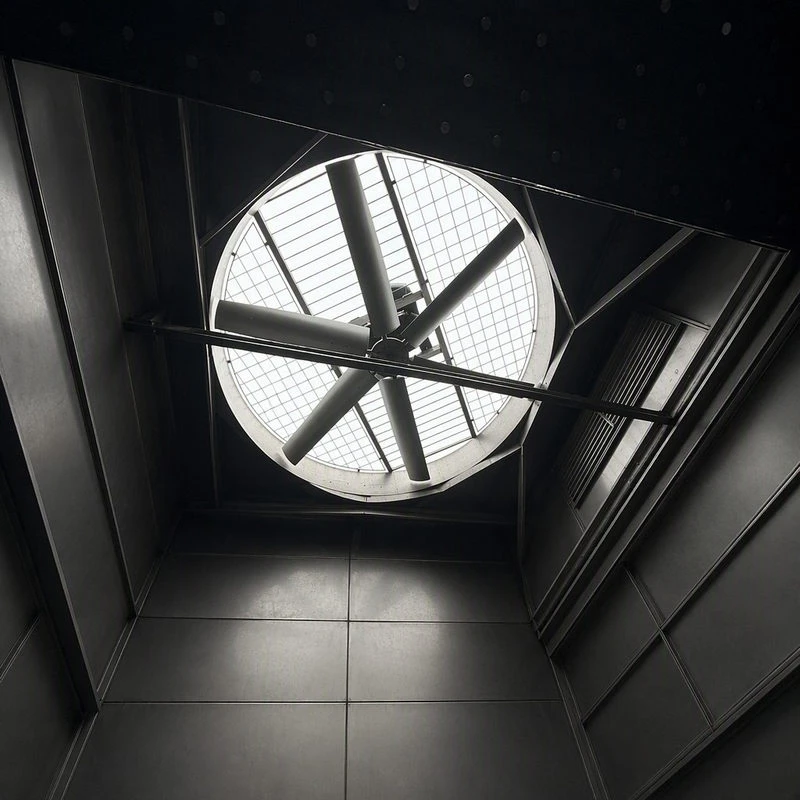

The AHBLG‑300 incorporates a staggered tube arrangement with enhanced external finning (optional) and an induced‑draft axial fan with aerodynamic blade profiling. This design maximizes the air‑to‑water heat transfer coefficient while minimizing airflow dead zones. More importantly, the smooth stainless steel surface has low adhesion propensity for scale and biofilm, meaning that even with moderate water hardness in the spray basin, fouling factors remain significantly lower than those of carbon steel or plastic‑coated coils. As a result, you sustain 95%+ of the original design capacity over 5 years of operation, without yearly acid‑cleaning overhauls – a tangible energy and maintenance saving.
Parameter Specifications
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
