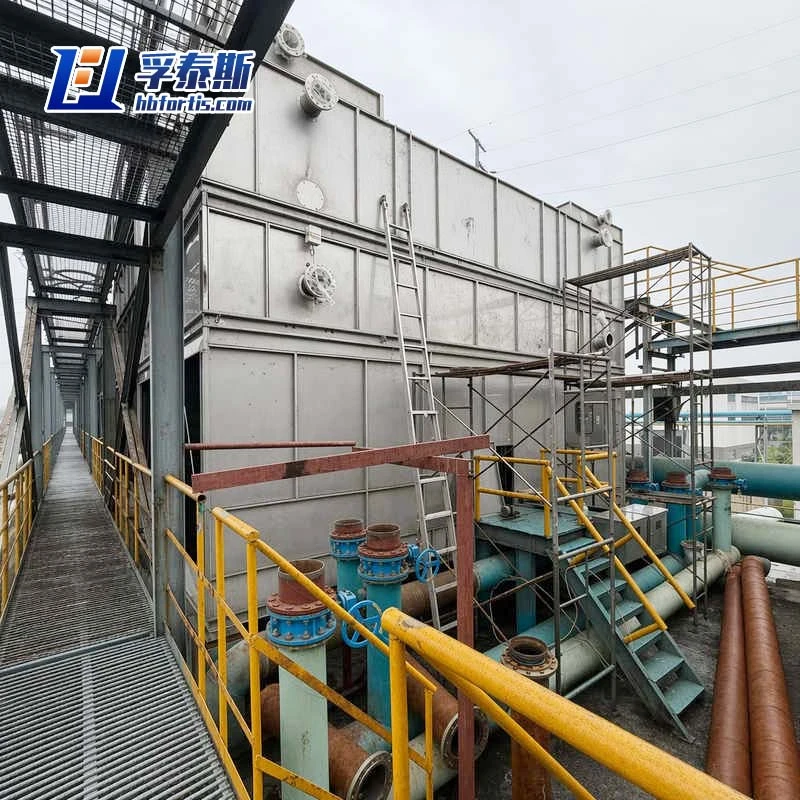

As a factory-direct stainless steel cooling tower exporter from China, we supply the AHBLD-700 model specifically engineered for heavy-duty industrial environments, including combined-cycle power plants, large-scale HVAC central systems, and chemical processing facilities. Constructed with full 316L stainless steel pan and casing, this 700-ton-rejection unit eliminates rust contamination and reduces long-term maintenance costs by 40% compared to standard galvanized towers. Our export track record covers Southeast Asia, the Middle East, and South America, with customized voltage controls and seismic bracing available for project-specific requirements. Backed by in-house foundry and CNC cutting lines, we guarantee 25-day rapid dispatch and full compliance with ISO 14001 and ASME Section VIII standards, ensuring your procurement risk is minimized while maximizing thermal performance in ambient temperatures up to 52°C.
Folleto de productos de Hebei Fortis Technology Co., Ltd
Product Advantages
Full 316L Stainless Steel Construction – Zero Rust Contamination
Unlike conventional galvanized or painted cooling towers that suffer from corrosion peeling after 2–3 years of service, the AHBLD-700 adopts a complete 316L stainless steel shell, basin, and distribution header. This material choice is non-negotiable for industries such as petrochemical refining, fertilizer plants, and coastal power stations where saline mist or acidic vapors are present. The 316L grade offers superior pitting resistance against chlorides and sulfides, ensuring that your water loop remains iron-free and your downstream heat exchangers never face fouling from rust particles – a hidden cost that often exceeds the tower’s initial price within five years.
Heavy-Duty 700-Ton Nominal Capacity – Built for Continuous Industrial Baseload
The AHBLD-700 is not a light-commercial unit; it is rated at 700 refrigeration tons (TR) under 37°C entering water temperature and 27°C wet-bulb design conditions. This capacity perfectly matches the heat rejection demands of medium-sized turbine auxiliary systems, large-scale centrifugal chillers in airport HVAC plants, and continuous casting cooling lines in steel mills. The tower’s oversized air inlet louvers and deep-pitch fan blades allow stable thermal performance even when ambient wet-bulb temperatures spike to 28°C, ensuring your production process never throttles down due to insufficient cooling – a critical reliability factor for 24/7 process industries.
Factory-Direct Pricing with Full Traceability – No Trading Margin
As an integrated Chinese manufacturer with our own foundry, sheet-metal forming presses, and motor winding shop, we control every cost component of the AHBLD-700 from raw coil to final assembly. This vertical integration allows us to offer exporter-direct pricing that is 18–25% lower than equivalent Korean or European brands, while maintaining full material traceability – each batch of 316L steel comes with mill test certificates (MTC) and PMI (positive material identification) reports. For international buyers, this means you pay only for the engineered product, not for distributor commissions, rebranding fees, or warehousing middlemen.
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
