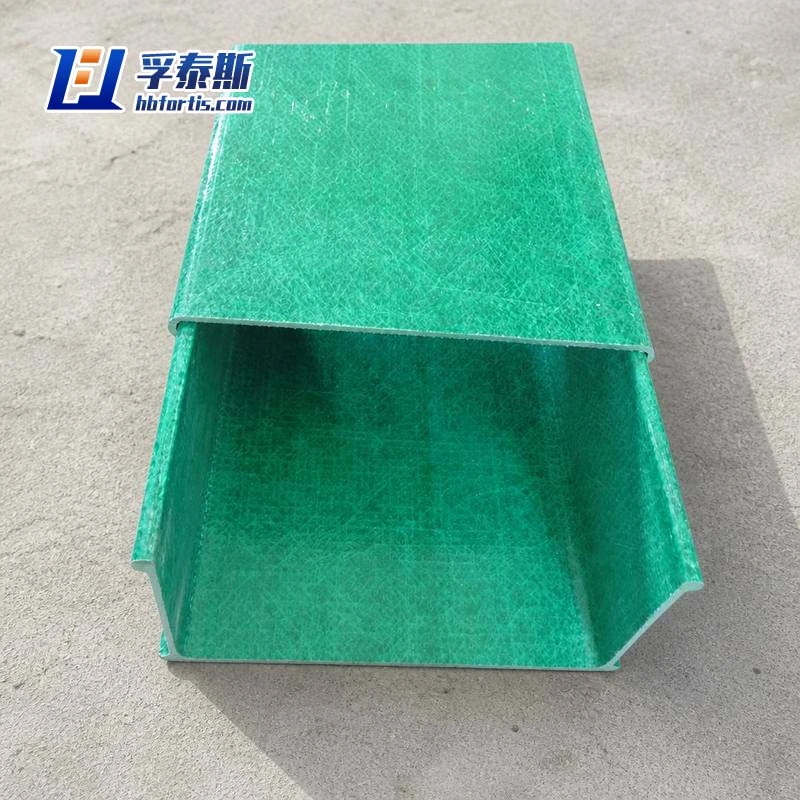

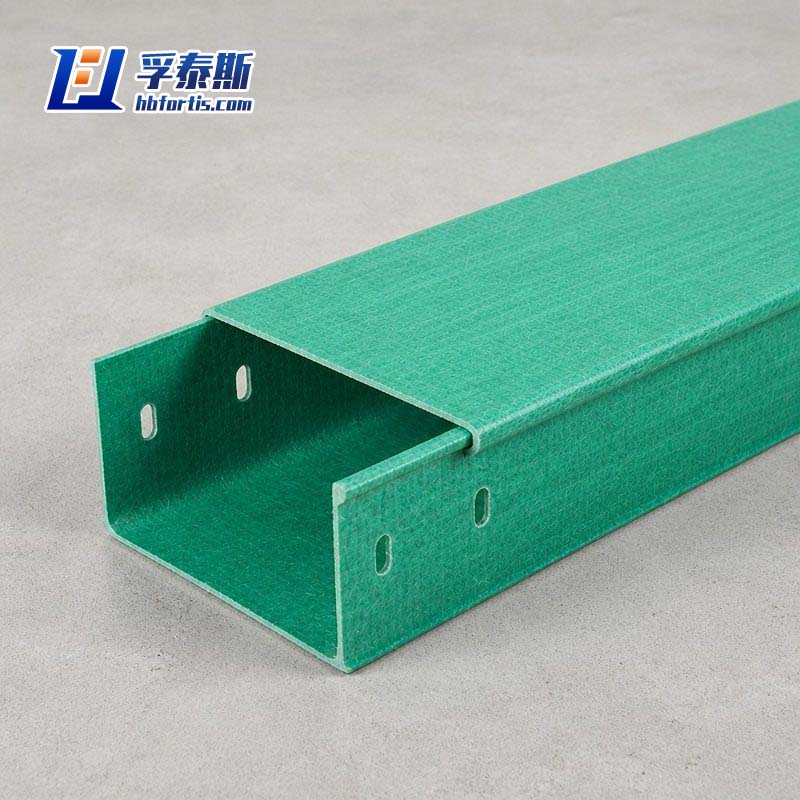

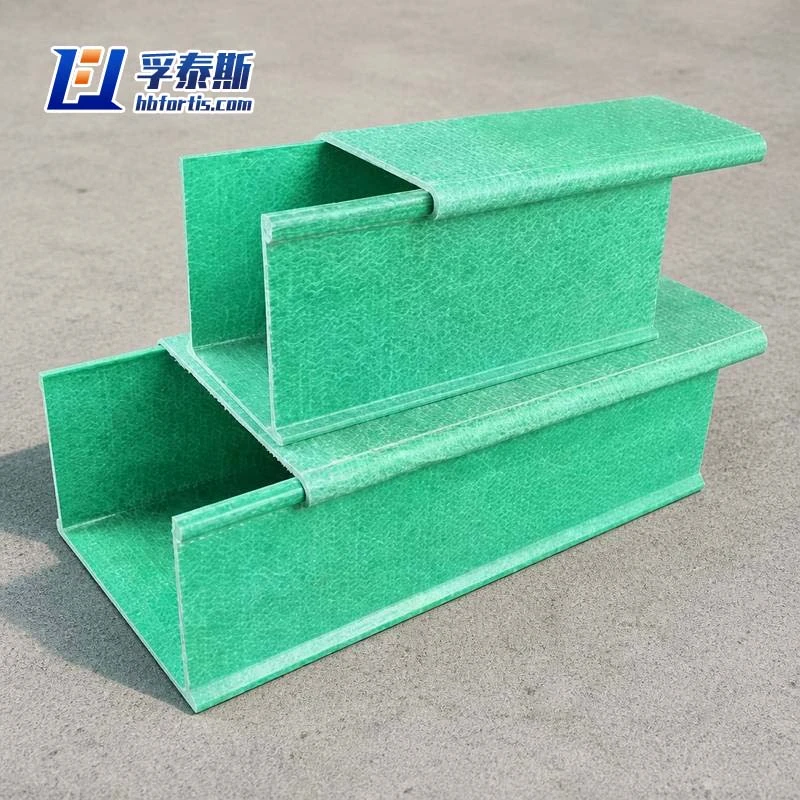

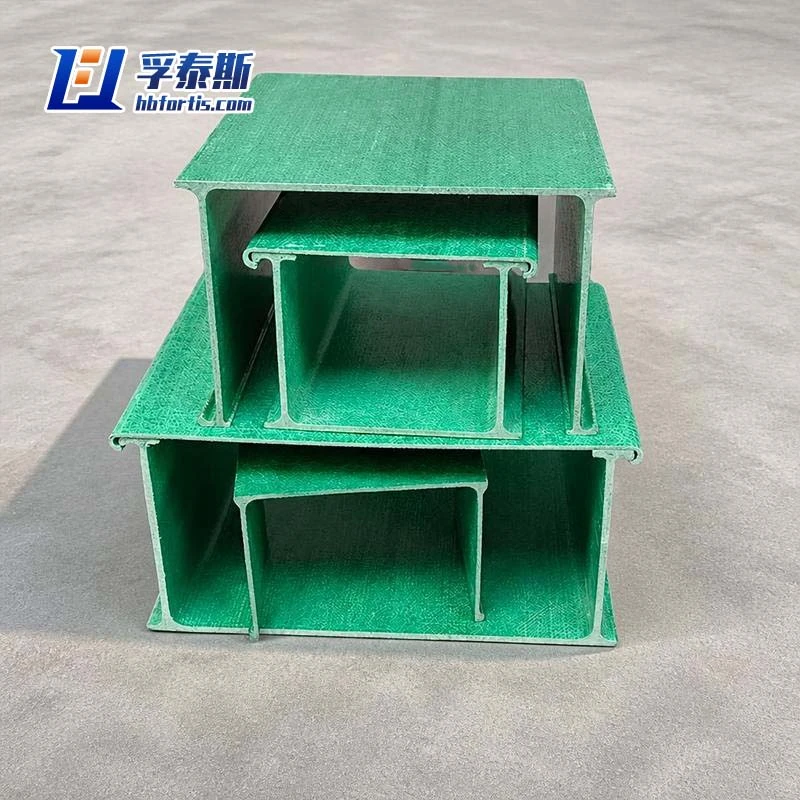

We are a China-based FRP cable trunking factory and exporter, delivering non-conductive, moisture-proof fiberglass enclosures directly to metro tunnel, data center, and food processing projects. Our trunking systems protect sensitive wiring from dust, water, and chemical washdown while eliminating grounding concerns common with metal enclosures. With export experience across Asia, the Middle East, and Latin America, we produce custom cross-sections, IP-rated covers, and fire-retardant resin grades. Work with us for factory-direct pricing, consistent quality control, and full export documentation for your next cable containment package.
Folleto de productos de Hebei Fortis Technology Co., Ltd
Product Advantages
Sealed Protection Against Dust, Water, and Contaminants
FRP cable trunking is designed as an enclosed containment system, which means cables are fully shielded from the surrounding environment rather than merely supported. The close-fitting covers and optional gaskets prevent dust, moisture, oil mist, and airborne particles from reaching the conductors, making trunking far more suitable than open trays for cleanrooms, food production lines, and precision manufacturing areas. This sealed construction also reduces the frequency of cable cleaning and inspection, which lowers long-term housekeeping costs in regulated facilities.
Non-Conductive Material for Enhanced Electrical Safety
Because fiberglass-reinforced plastic does not conduct electricity, FRP cable trunking removes the risk of short circuits caused by accidental contact between cables and metal enclosures. There is no need for separate grounding conductors or bonding jumpers on the trunking itself, which simplifies installation and reduces material costs. Maintenance staff can work near the trunking with a lower risk of electric shock, and the non-magnetic nature of the material prevents induced currents that sometimes affect metal containment in high-current installations.
Resistance to Chemical Washdown and Sanitation Chemicals
Food processing plants, pharmaceutical facilities, and beverage bottling lines are routinely cleaned with caustic detergents, chlorinated foam, and high-pressure water. FRP cable trunking withstands these aggressive sanitation routines without pitting, rusting, or degrading, unlike painted steel or galvanized alternatives. The smooth resin surface also prevents bacterial buildup and is easy to wipe down, helping operators meet hygiene standards such as HACCP and GMP without replacing containment systems every few years.
Parameter Specifications
|
Product |
FRP Cable Trunking |
|||
|
|
||||
|
Model |
Height×Width(mm) |
Thickness(mm) |
L(mm) |
Weight(kg) |
|
FT-CT1-2 |
100×200 |
3 |
2000 3000 4000 |
5.2 |
|
FT-CT1-3 |
100×300 |
3 |
6.0 |
|
|
FT-CT1-4 |
100×400 |
2.5 |
6.8 |
|
|
FT-CT1-5 |
100×500 |
2.5 |
7.5 |
|
|
FT-CT1-6 |
100×600 |
2.5 |
9.0 |
|
|
FT-CT1-8 |
100×800 |
2.5 |
11.2 |
|
|
FT-CT15-2 |
150×200 |
3 |
2000 3000 4000 |
6.8 |
|
FT-CT15-3 |
150×300 |
3 |
7.5 |
|
|
FT-CT15-4 |
150×400 |
2.5 |
8.2 |
|
|
FT-CT15-5 |
150×500 |
2.5 |
9.0 |
|
|
FT-CT15-6 |
150×600 |
2.5 |
10.6 |
|
|
FT-CT15-8 |
150×800 |
2.5 |
13.1 |
|
|
FT-CT2-2 |
200×200 |
4 |
2000 3000 4000 |
9.0 |
|
FT-CT2-3 |
200×300 |
3.5 |
9.8 |
|
|
FT-CT2-4 |
200×400 |
3 |
10.6 |
|
|
FT-CT2-5 |
200×500 |
3 |
11.4 |
|
|
FT-CT2-6 |
200×600 |
3 |
12.6 |
|
|
FT-CT2-8 |
200×800 |
3 |
14.8 |
|
|
FT-CTn-n |
Customized |
Customized |
Customized |
|
|
Cable trunking accessories |
The cable trunking elbows, three-direct-links, Bends, Risers, T Junctions, Crosses Reducers |
|||
|
|
||||
